DVS-3222BAS 600W 6bars 100W 755nm/808nm/1064nm Diode Bar Stack Module For Apolo Hair Removal Machine details:

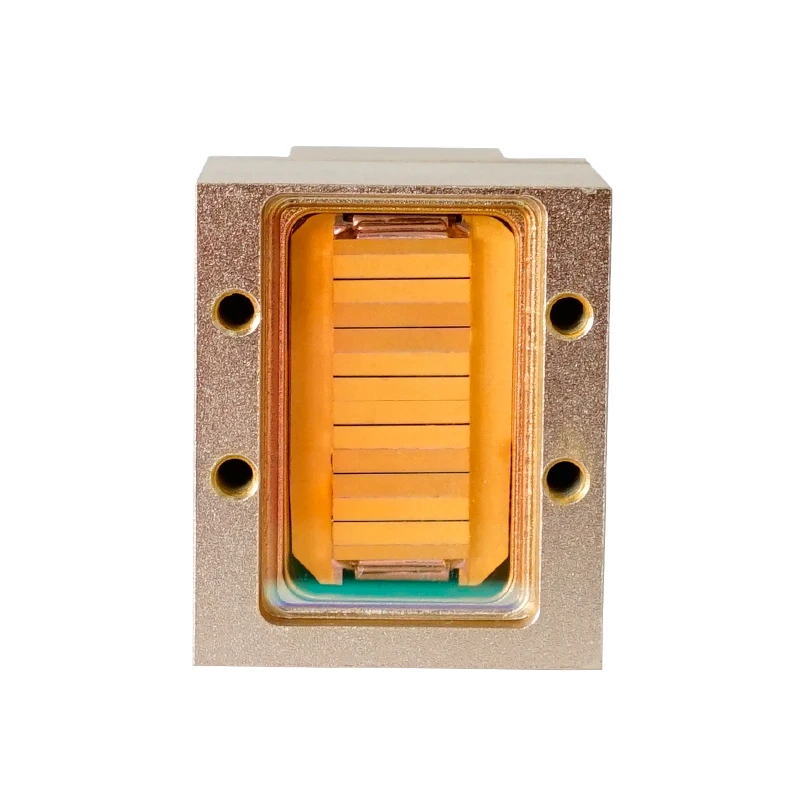

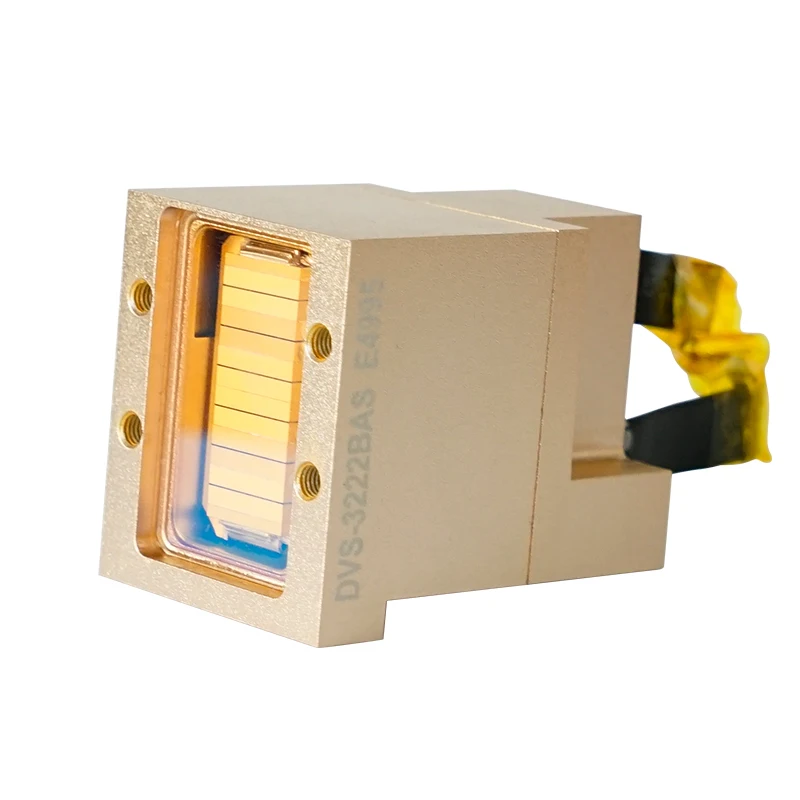

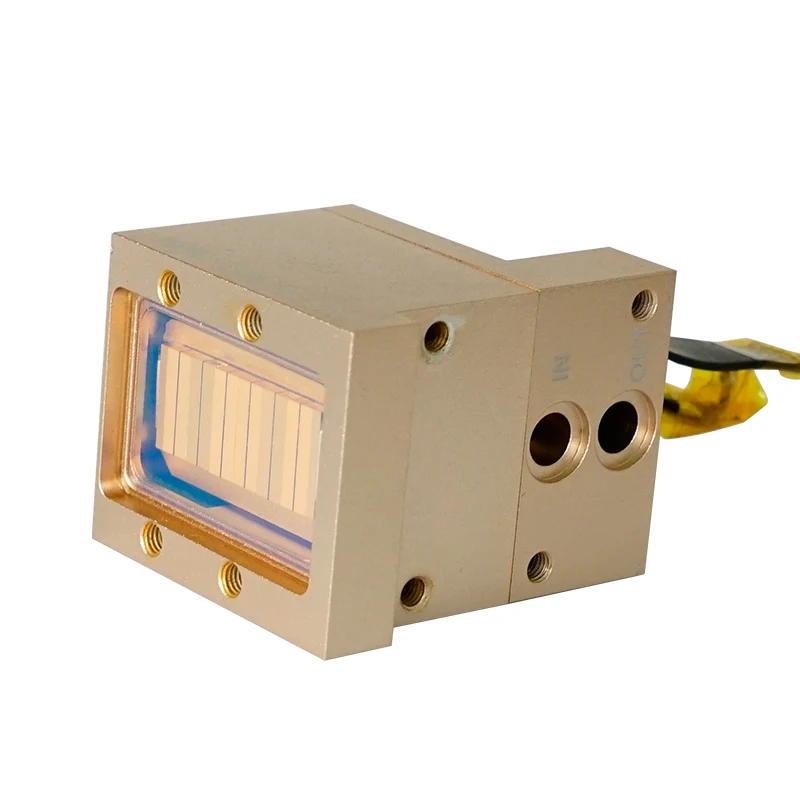

This DVS-3222BAS 600W 6bars 100W 755nm/808nm/1064nm Diode Bar Stack Module For Apolo Hair Removal Machinehas 6bars with 3 wavelength with a aluminum shell. The water holes are on the back of the stack. Electrodes are on the back of stack also.
DVS-3222BAS 600W 6bars 100W 755nm/808nm/1064nm Diode Bar Stack Module For Apolo Hair Removal Machine Paramters
| Model SN | DVS-3222BAS |
| Peak Power | 600W |
| Number of Bars | 6 |
| Fast Axis Divergence | ≦31° |
| Slow Axis Divergence | ≦10° |
| Bar Pitch | 2.9mm |
| Central Wave | 808nm+ 755nm+ 1064nm 3 waves |
| Drift Coefficient | 0.28nm/℃ |
| Threshold Current | 18A |
| Working Current | ≦100A |
| Working Voltage | ≦2.0V/Bar |
| Frequency | 1-10HZ |
| Duty Circle | ≦20% |
| Pulse Width | ≦200ms |
| Working Temperature |
15～35℃ |
| Best Water TEM | 20-25℃ |
| Storage TEM | -10-60℃ |
| Water Flow | ＞3L／min |
| Water Pressure | 0.4-0.6MPa |
| Water Quality Control | Pure water or deionized water |
>Save Money. Replace the broken diode stack only. Low cost and convenient
>Long lifetime. we use diode laser bars from US Coherent Brand.
The newest Au- Sn mounting technology will be applied when repairing.
After repair the hand-piece will be as a new one. lifetime is much longer than before.
>All technical support available. We major in diode laser mounting, software, spare parts over 10 years.
All the technologies about laser hair removal machine are open to share with you.

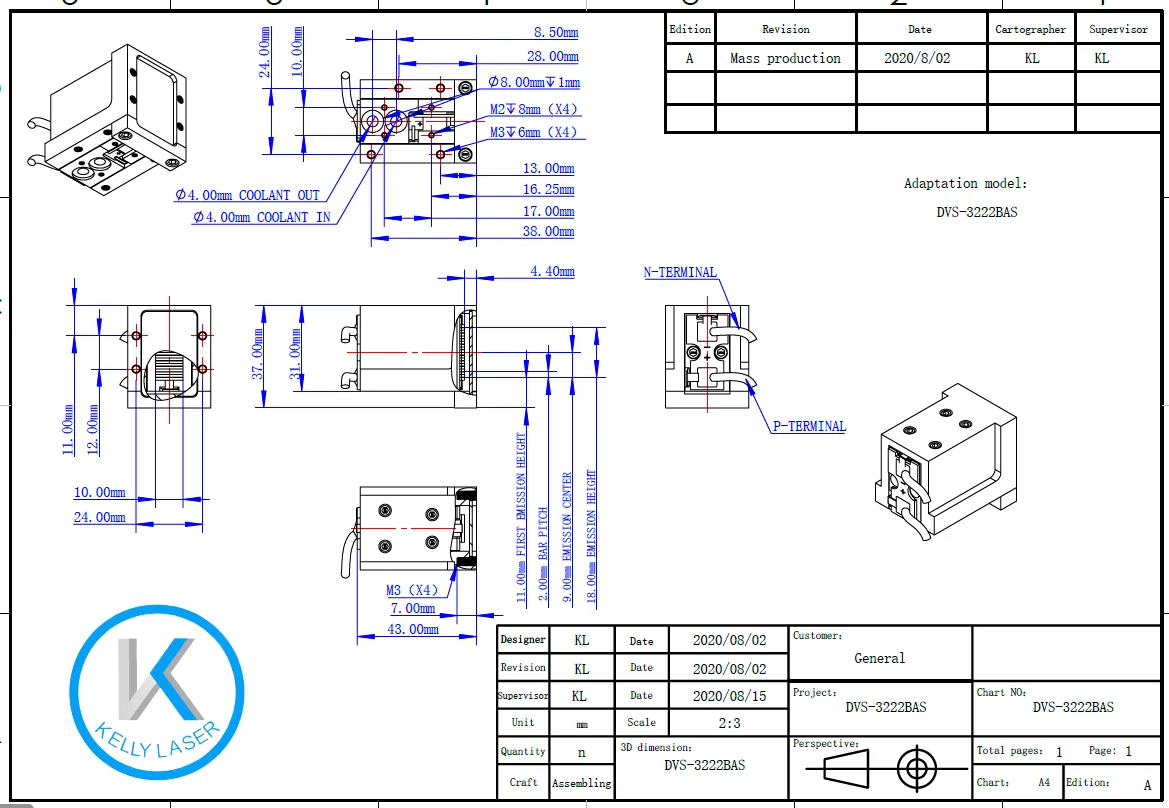

DVS-3222BAS 600W 6bars 100W 755nm/808nm/1064nm Diode Bar Stack Module For Apolo Hair Removal Machine Dimensions
DVS-3222BAS 600W 6bars 100W 755nm/808nm/1064nm Diode Bar Stack Module For Apolo Hair Removal Machine they can be used for different handles with same diode module following

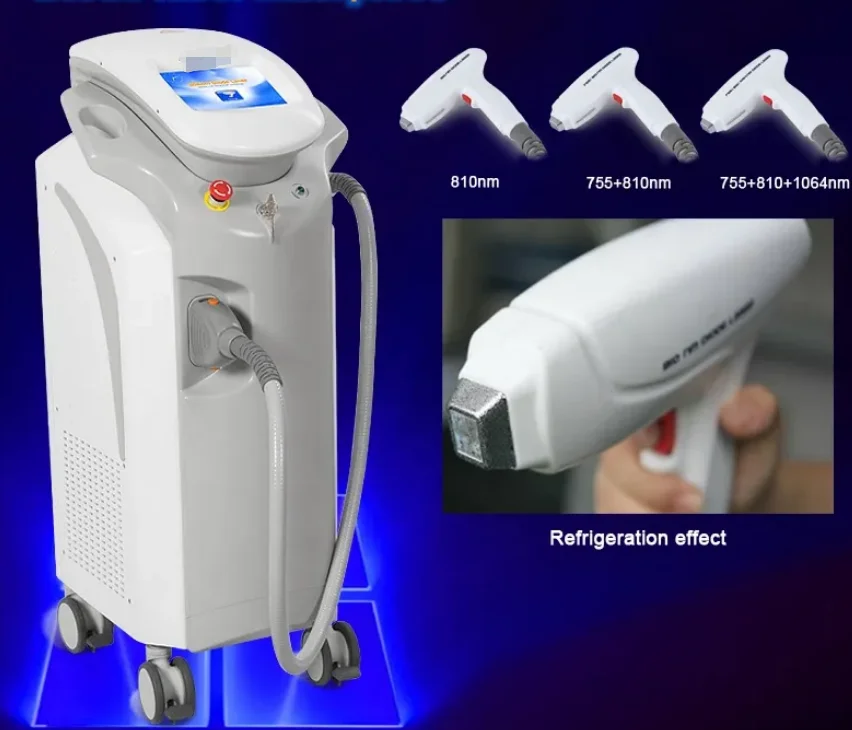

HS-811 diode laser hair removal equipment
For DVS-3222BAS 600W 6bars 100W 755nm/808nm/1064nm Diode Bar Stack Module For Apolo Hair Removal Machine
Also we can offer other diode related stacks, also you can contact whatsapp 0086-13522789042
